HTM72 S3 is the more compact centre channel speaker in the new 700 Series.
It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers.

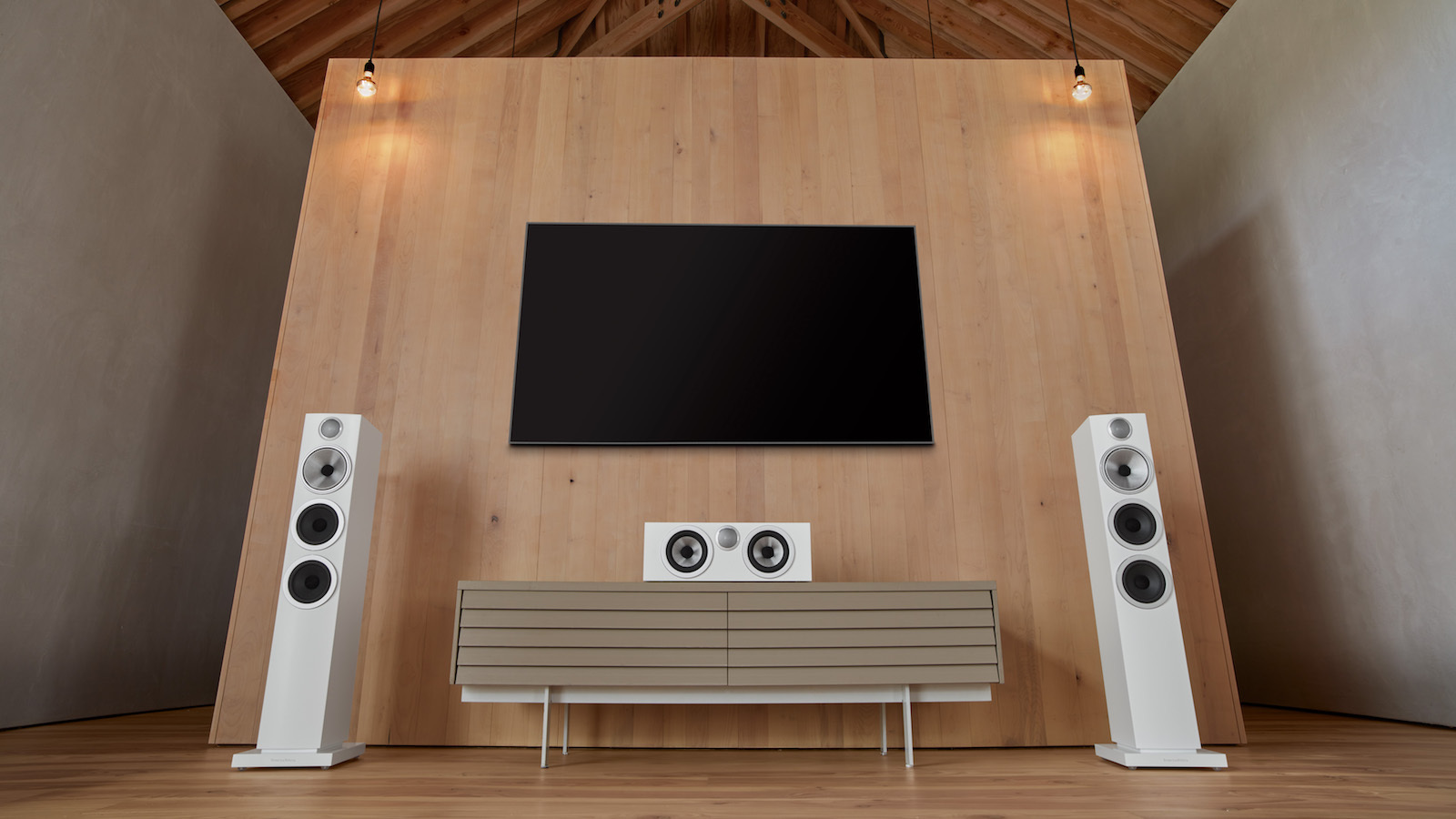

It’s the perfect partner for a home theatre system based around the 704 S3, 706 S3 or 707 S3.
Studio Sound Comes Home
The new Bowers & Wilkins 700 Series is defined by elegance and driven by best-in-class performance. Every model in our most extensive range is inspired by the recording studio and enabled by cutting-edge technologies first developed for our flagship 800 Series Diamond.
The 700 Series contains eight models: there’s a speaker to suit every home and every requirement, whether your passion is high-performance stereo, immersive home cinema or a mix of both.
Bring Hollywood Home
With two centre channel speakers to choose from plus the option of matching subwoofers, in-wall and in-ceiling speakers, the new 700 Series performs brilliantly in any home cinema set-up.
Carbon Dome tweeters
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Continuum cone
Thanks to its composite construction, the Continuum cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Description
2-way vented-box system
1x ø25mm (1in) Decoupled Carbon Dome high-frequency
1x ø130mm (5in) Continuum cone bass / midrange
Technical Features
Decoupled Carbon Dome tweeter
Continuum cone bass / midrange
Flowport
Frequency range
48Hz to 33kHz
Frequency response (+/-3dB from reference axis)
70Hz - 28kHz
Sensitivity (on axis at 2.83Vrms at 1m)
87dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 200Hz - 22kHz
Nominal impedance
8Ω (minimum 4.3Ω)
Recommended amplifier power
30W - 120W into 8Ω on unclipped programme
Max. recommended cable impedance
0.1Ω
Dimensions
Height: 165mm (6.5in) cabinet only
Width: 477mm (18.8in) cabinet only
Depth: 266mm (10.5in) cabinet only; 302mm (11.9in) including grille and terminals
Net weight
9.7kg (21.3lbs)
Finishes
Gloss Black cabinet with Black grille
Satin White cabinet with Grey grille
Mocha cabinet with Black grille
