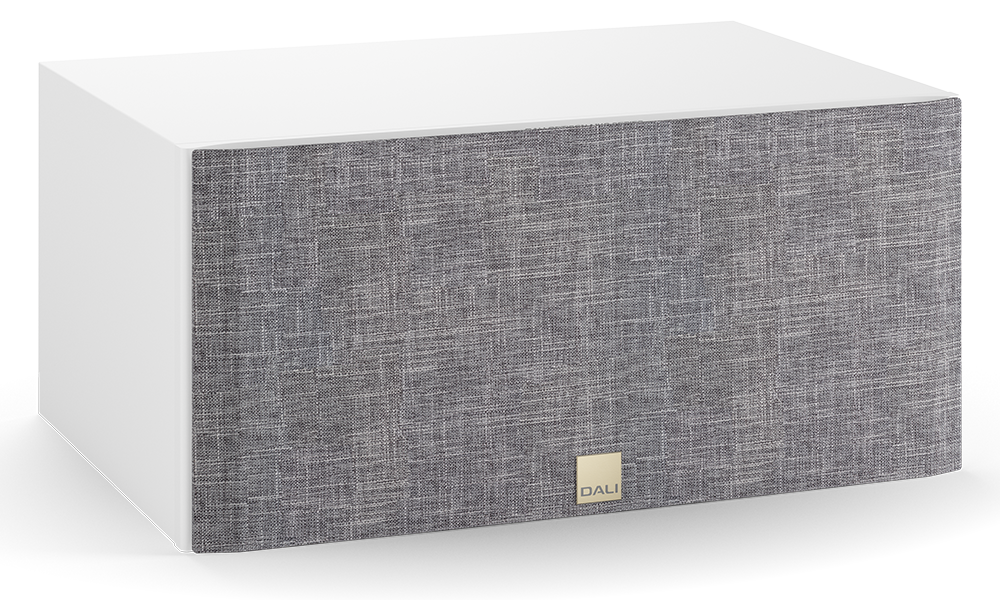

Dali Opticon Vokal MK2 Centre Speaker

Opticon Vokal MK2
Made in Denmark

The OPTICON VOKAL MK2 is specifically voiced to play the centre channel role and engineered to fit perfectly into a full OPTICON MK2 audio-visual system.

Patented SMC
Our patented SMC magnet motor minimises hysteresis to significantly reduce electro-acoustic distortion.

Slim Reflex Ports
With front-facing, twin letterbox reflex ports, the VOKAL MK2 can be placed in more compact enclosures than traditional centre speakers.

Made in Denmark
At our Danish production facilities, we hand-assemble, test and QA everything from cutting the laminate to surface finishing.

Hybrid Tweeter
Our hybrid tweeter marries the clarity, speed and dynamics of a soft dome with the very high frequency detail and finesse of a ribbon.

HIGH-PERFORMANCE AUDIO
Specifically voiced to play the centre channel role

The internal volume of the floorstanding OPTICON 6 MK2 significantly extends low-frequency response and bass volume level, making it ideally suited to large listening spaces. And with our signature hybrid tweeter module, it also has extraordinary detail and clarity higher up. As with the MK1 series, the OPTICON 6 MK2 is manufactured at our factory in Denmark using components produced in-house or sourced from the best specialist manufacturers locally and further afield.

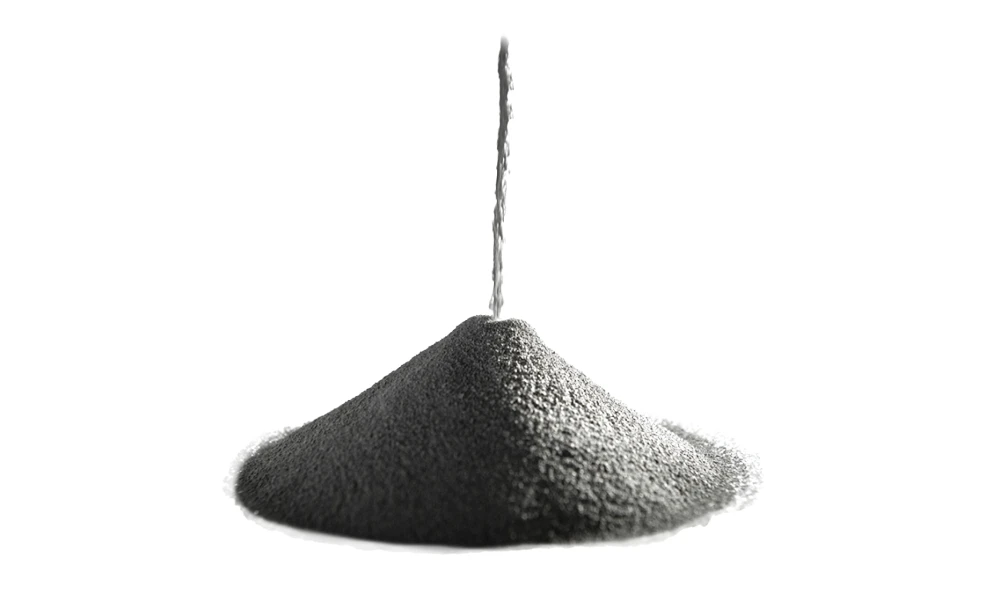

PATENTED SMC
Reducing distortion with Soft Magnetic Compound

The OPTICON VOKAL MK2 driver magnet system consists of a large ferrite ring magnet surrounding a pole-piece manufactured entirely of the unique DALI SMC (Soft Magnetic Compound) material. The use of SMC greatly reduces mechanical distortion caused by hysteresis and eddy currents, resulting in a drastic reduction in third-order distortion for extended listening pleasure, a relaxed midrange and a surprising amount of detailing.

HYBRID TWEETER
The master of wide dispersion

Our hybrid tweeter module marries a 29 mm soft dome tweeter with a custom 17 x 45 mm ribbon element. Both drivers are mounted on a cast aluminium faceplate, which provides a solid platform for the drivers and incorporates dispersion control detailing for optimal delivery of the high frequencies for off-axis listening. Our hybrid tweeter module offers the best of both worlds – the clarity, speed and dynamics of a dome tweeter with the very high-frequency detail and smooth finesse of a ribbon tweeter.

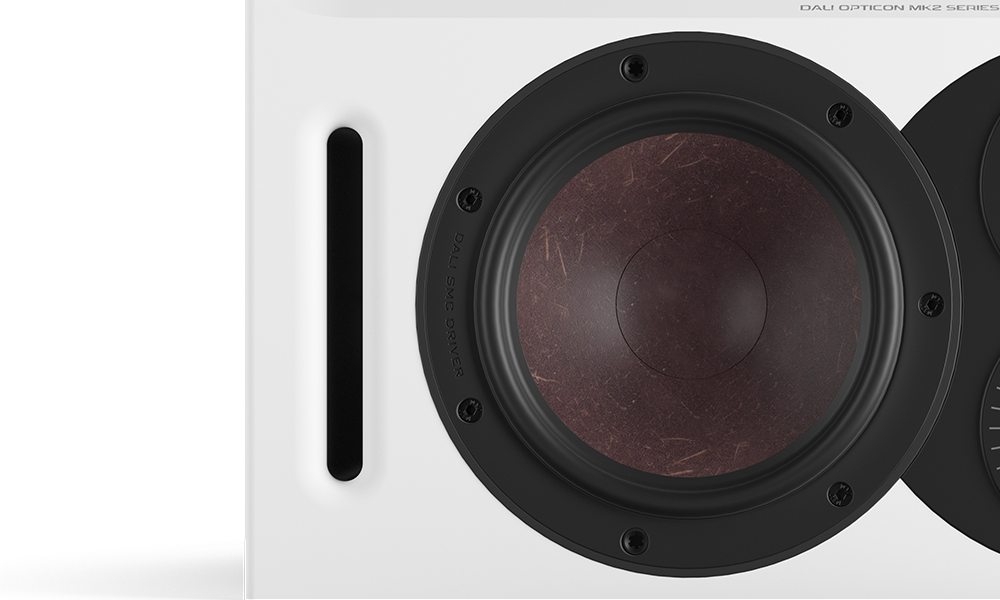

WOOD FIBRE CONE
Accurate, detailed sound

The 6½" bass/midrange driver features our proprietary fine paper pulp and reinforced wood fibre composite materials. Together, they create a stiff, lightweight structure that works with the low loss surround and spider suspension to reproduce the most minute details with accuracy and transparency.

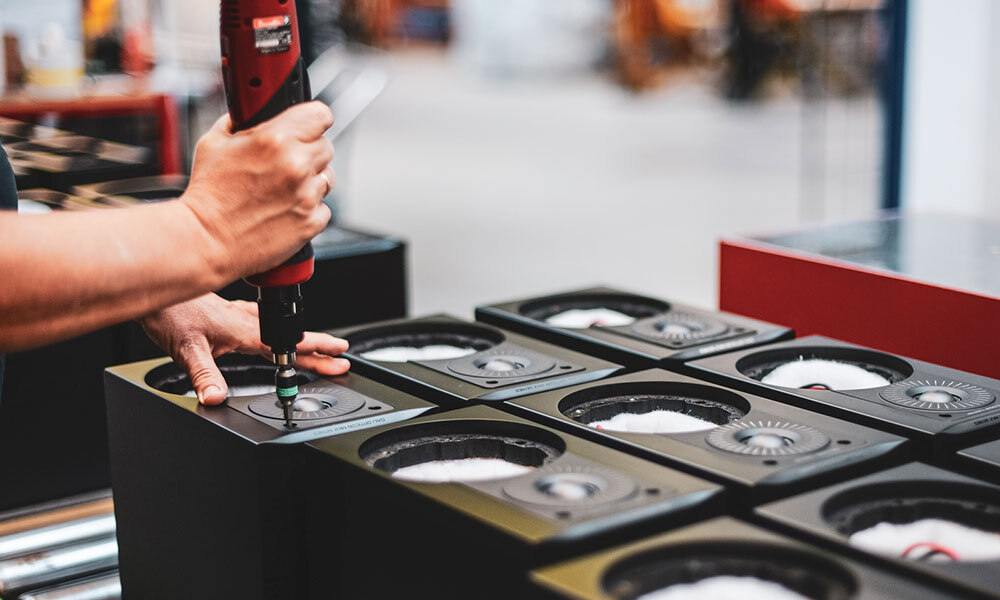

HIGH QUALITY CABINET
Ensuring the highest quality products

With a 25 mm thick front baffle and extra internal bracing, the speaker cabinet is extremely rigid and practically eliminates panel resonance. To ensure the best possible quality product, we manufacture and test OPTICON MK2 series speakers at our production facilities in central Denmark, carrying out everything from cutting and routing of the wood laminate panels to installing the drivers and crossover.

SPECIFICATIONS

Included accessories

Rubber feet, manual

Speaker Dimensions [H x W x D] [in / cm]
7.9 x 17.1 x 12.3 / 201 x 435 x 312

Speaker Weight [lb / kg]
20.2 / 9.2

Frequency Range [+/- 3] dB [Hz]
47 - 30,000

Sensitivity [2.83V/1m] [dB]
88

Nominal Impedance [ohms]

4

Maximum SPL [dB]

109

Recommended Amp. Power [Watts]

30 - 150

Crossover Frequencies [Hz]

2,400 / 14,000

Crossover Principle

2½ + ½-way

High Frequency Driver

1 x 29 mm soft dome, 1 x 17 x 45 mm ribbon

Low Frequency/Midrange Driver(s)

1 x 6½”
