JLINK™ TRX
Wireless, High-Fidelity Audio Transmitter & Receiver Kit
Using state-of-the-art wireless technology, the JLINK™ TRX system delivers pure, high-fidelity sound throughout your home, invisibly and effortlessly.
By broadcasting at an ultra-high frequency of 2.4 GHz, the JLINK™ TRX lets you connect any two line-level audio devices together, without the use of RCA signal cables to connect in between. Now you can send crystal clear, stereo sound from a source unit to a receiver, preamp or powered loudspeakers, wirelessly, up to 100 feet away (30 meters) without needing to route or hide long expanses of signal cables. RCA-type input/output connectors are compatible with most audio equipment and a compact design makes it easy to hide the transmitter and receiver chassis out of sight. A JLINK™ port is also included on the receiver for direct connection with JLINK™ compatible JL Audio subwoofers.
Especially useful in system designs that include remote source applications, lengthy signal cable runs or demanding installations due to challenging architecture, the JLINK™ TRX system gives you the freedom to position a source unit or outlying amplifier/powered loudspeakers (subwoofer or full-range) almost anywhere you would like.
Please note, the JLINK system cannot replace speaker wire, as it does not amplify passive speakers.
- Outstanding fidelity in subwoofer and full-range applications
- Bit-Perfect Digital PCM Stereo Wireless Technology (16 bit / 48 kHz)
- RCA-type input/output connectors are compatible with most audio equipment
- Up to 3 JLINK™ transmitters can be used concurrently (3 channels to choose from)
- Up to 4 JLINK™ receivers (sold separately) can be paired to each JLINK™ transmitter
- Receiver includes JLINK™ port for use with compatible JL Audio products, removing the need for the included 5V DC power supply

JLINK™ Overview: "Wireless Cables"
The JLINK™ wireless audio system is designed for all those situations where running audio signal cables is impractical, but audio quality cannot be compromised.
The JLINK™ TRX kit connects any two line-level audio devices together via a bit-perfect, wireless protocol that retains the full fidelity of your audio signals, without the compression of lossy wireless systems.
If you wish to expand your JLINK™ setup, up to four JLINK™ RX receivers can be connected to a single JLINK™ transmitter, delivering audio signals to multiple points in your home. Up to three JLINK™ transmitters can operate in a home, each on its own wireless channel, and each connected to up to four JLINK™ RX receivers.
Make the Connection:
The JLINK™ audio wireless system transmits crystal-clear, lossless audio between components over distances up to 100 feet (30 meters). The JLINK™ system is suitable for full-range audio or subwoofer signals.

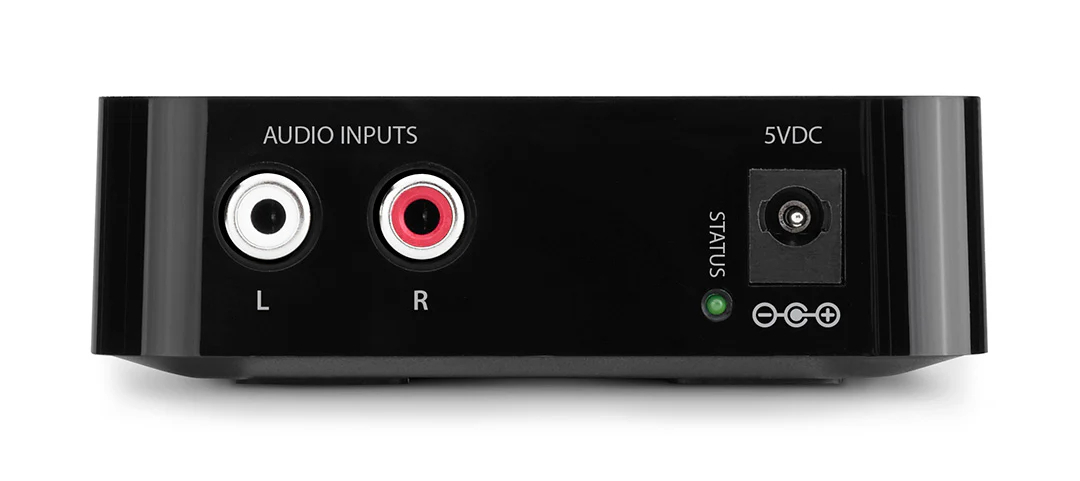

The JLINK™ Transmitter connects to your audio system via a pair of analog inputs with RCA-type jacks.

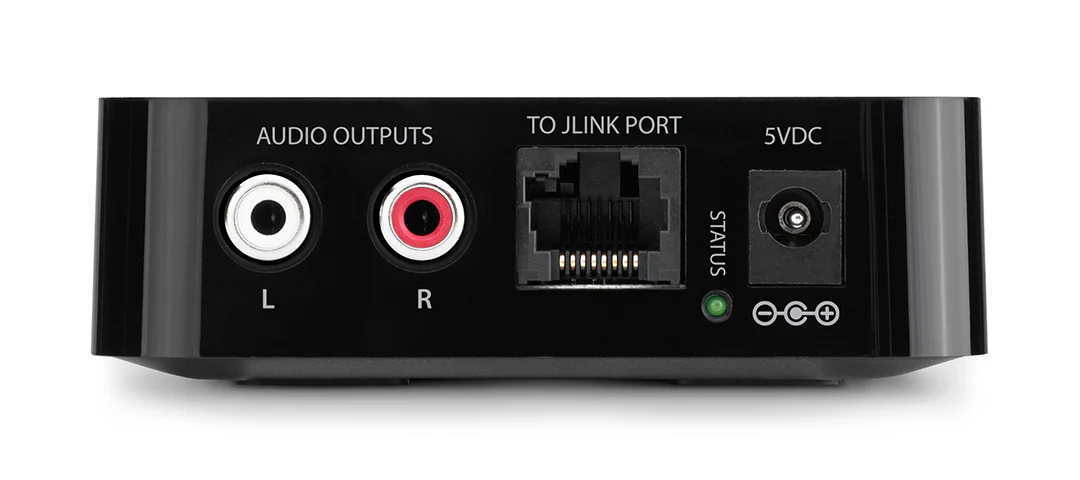

The JLINK™ Receiver offers analog outputs via RCA-type jacks or a direct, powered connection to the JLINK™ port on a compatible JL Audio subwoofer. The JLINK port means one fewer cable, as you no longer need to connect audio via RCA and power via the included 5V DC power supply to a wall outlet.

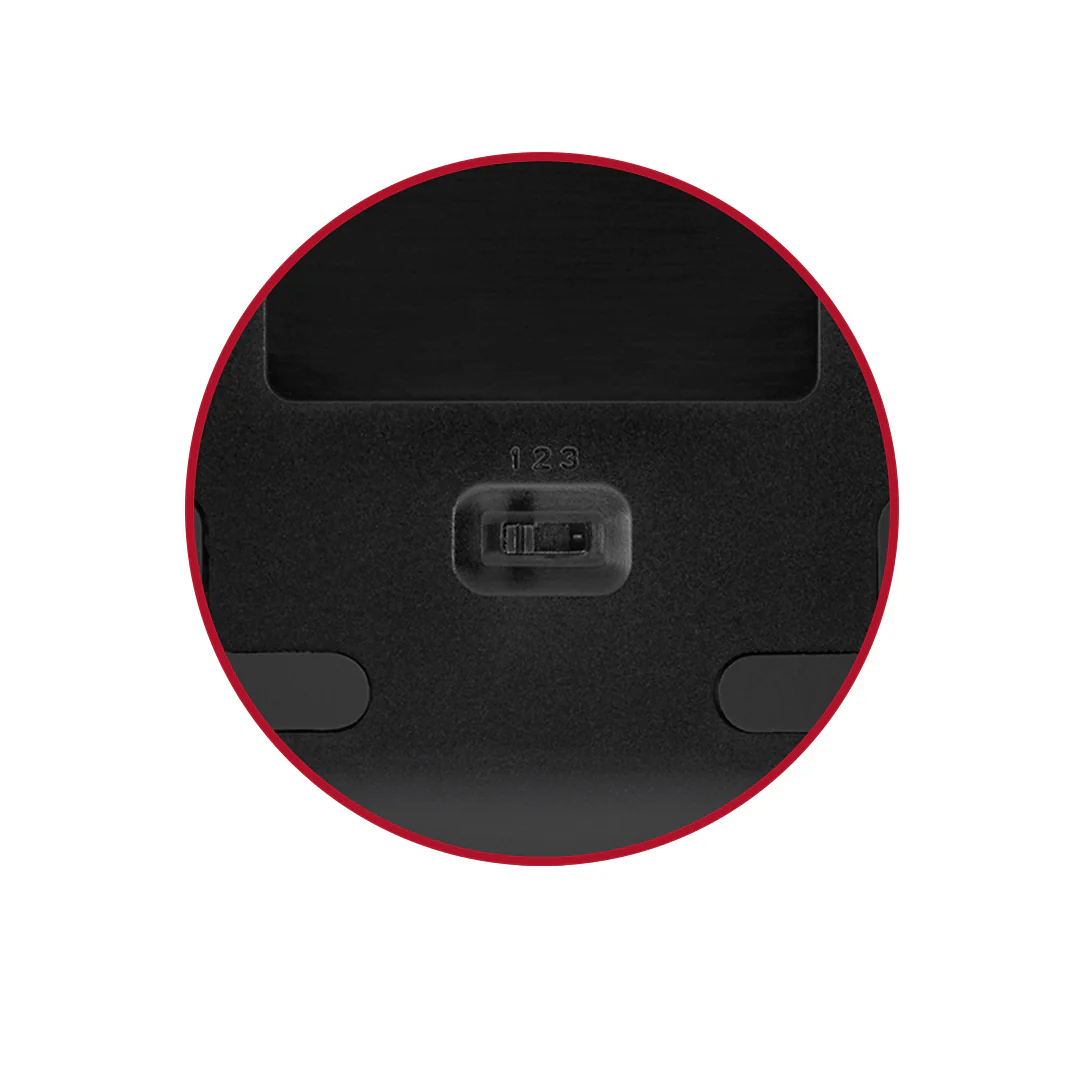

A switch on the underside of each JLINK™ unit assigns it to one of three RF channels, allowing multiple JLINK™ systems to operate independently in a home
