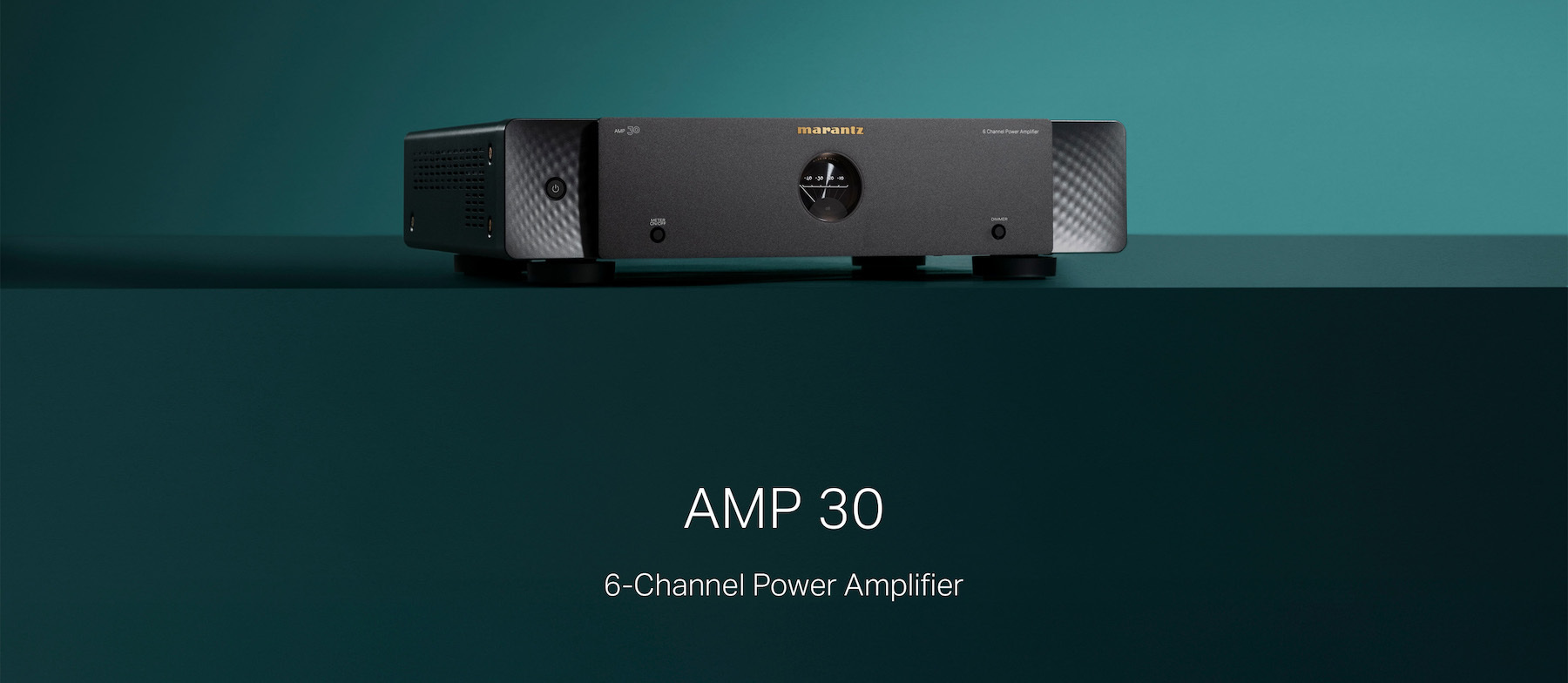

Marantz AMP 30 – 6-Channel Home Theatre Power Amplifier

Cinema AMP 30

6-Channel Power Amplifier with 200 Watts and Exclusive HDAM

Made at Shirakawa Audio Works, Japan

Excellence only begins with performance.

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series Amplifiers are the foundation of the world's most demanding home theatres.

AMP 30 is a remarkably powerful, slimline 6-channel amplifier that can be paired with an AV preamplifier for an outstanding home theatre system. AMP 30 is rated at 200 watts per channel into 8 ohms and 400 watts per channel into 4 ohms, and is built on Marantz’s exclusive HDAM and high-efficiency low-distortion Class D amplification.

Combine with additional AMP 30, AMP 20 or AMP 10 power amplifiers to drive more complex speaker configurations.

• Detailed and immersive sound transforms your home theater

• 200 watts per channel into 8Ω / 400 watts per channel into 4Ω

• Six slimline channels power dedicated home theaters

• Bi-amp mode drives high- and low-frequency sections of loudspeakers independently

• BTL Mode: Three channels of 400W or six channels of 200W

• Balanced XLR input is ideal for reducing input noise

• Porthole with analog meter measures output

• Soft side lights cast a warm glow on the amplifier front panel

• Elegant slimline design matches rich, warm sound



Sound Master Tuned

Our Marantz Sound Master tuned the AMP 30 for exceptional performance with meticulous parts selection to create outstanding sound in your home.



Making sound the Marantz way is a seamless fusion of art and science, practiced by creators who balance and select components individually for their sonic qualities — they are the Sound Masters.



Timeless Style

Excellence is heard and seen. AMP 30 is crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.



Marantz design is timelessly elegant. AMP 30 is constructed using steel and aluminum casework, while the subtle texture molded into the front panel is lit by the dimmable soft glow of sidelights on either side of our iconic porthole design.



Customizable

Comprehensive connectivity options ensure AMP 30 will always deliver the perfect results to suit your home theater.



Each of the six 200-watt channels can operate independently, or channel pairs can be switched into bi-amp mode to drive individual speakers more effectively. AMP 30 also supports bridged (BTL) mode to produce up to 400 watts per channel into 8 ohms across three channels — providing flexibility and high output where needed.





Compact, Versatile, Scalable

AMP 30 gives you six channels of commanding power in a slimline enclosure.



Custom Class D amplification is highly efficient, and strategically incorporated whisper-quiet fans keep the unit running optimally even under highly dynamic conditions, making it perfect for rack-mount theater installations. Combine with additional AMP 30, AMP 20 or AMP 10 power amplifiers to drive more complex speaker configurations.



Complete Compatibility

Featuring the connectivity and power to match your choice of loudspeakers, processors, and rooms.



Gold-plated RCA and high-grade XLR connectors accept audio input from most surround processors. Custom Marantz SPKT-1+ binding posts are ergonomic and provide the best possible coupling to loudspeaker cables. Low-distortion, high-power output offers ample drive for virtually any loudspeaker configuration to maximize performance.



When paired with AV 30 via the included link cable, AMP 30 can be controlled using the preamplifier. Power and illumination settings sync seamlessly for a unified experience.





Marantz HDAM-SA2

Typical amplifiers use typical parts. Exceptional amplifiers like AMP 30 use bespoke technologies to achieve ultimate performance. Marantz has further optimized our legendary HDAM-SA2 circuitry for use in all signal paths. HDAM-SA2’s high slew rate and low impedance maximize clarity, resolution, and tone.



Custom Class D

AMP 30 renders dynamics with lifelike impact and clarity thanks to custom Class D amplification. Channel pairs synchronize switching frequencies, heavy buss bars replace typical wiring harnesses for better current delivery, and custom curated ingredients elevate innovative engineering into the realm of rare excellence.



Bi-Amp Mode
Many high-end loudspeakers can be driven by two amplifiers at once (known as bi-amping)—one for low frequencies and one for high frequencies. AMP 30 can pair channels into bi-amp mode to maximize performance from loudspeakers that benefit from this feature.



BTL Mode
Need more power from fewer channels? Designed for flexibility, AMP 30 can also be configured in bridged-tied-load (BTL) mode, combining pairs of channels to deliver up to three channels of 400 watts when higher output is required.
