Description
CORE 12AT7
The CORE 12AT7 delivers everything you know and love about tube audio. With modern production and uncompromising selection processes ensuring reliability and consistency, the Ray Tubes CORE Collection is all you need for years of audio bliss.
Hand selected and tested, the Ray Tubes CORE 12AT7 vacuum tube is manufactured with modern production and selection processes for reliability and consistency. The CORE Collection leaves the uncertainty of the New Old Stock market behind and makes uneven performance and tube failures a thing of the past.
The 12AT7 vacuum tube is part of a family of dual triodes that also includes the 12AX7 and 12AU7. Its higher gain and transconductance made it suitable for high frequency applications in devices like TVs and FM radios. In the world of audio, it’s commonly used as a driver or phase inverter in push-pull audio circuits.
Sound Characteristics
The CORE 12AT7 delivers a clear and energetic sound character, ideal for users seeking mid-to-high frequency articulation and rhythmic precision, especially in systems with a neutral or slightly bright tonal balance.
Bass Performance
Restrained, prioritizing speed and clarity over weight or depth. Well defined structure but minimal low-end emphasis, making it suitable for tracks where bass is not the focal point.
Midrange Performance
Linear and open, delivering a clean and slightly forward tonality. It excels with vocals and acoustic instruments that benefit from a more transparent and articulate presentation.
Treble Performance
Crisp and energetic, with good clarity and fast transient response. While the extension isn't expansive, it stays clean and controlled without introducing harshness.
Dynamics and Soundstage
Dynamic handling is responsive, with smooth transitions in low-to-mid-level passages. Soundstage is relatively compact but well-layered, offering good positioning in near-field or small setups.
The CORE Collection
The entry-level CORE Collection delivers everything you know and love about tube audio. With modern production and uncompromising selection processes ensuring reliability and consistency, CORE is Ray Tubes' essential offering.
Looking to get more out of your existing system? The SELECT lineup of tubes can take your amp to the next level thanks to its more involved production and stricter selection.
Everything You Love Without the Hassle
The tube marketplace is a bit of a minefield. 70% of new production isn’t intended for audio applications, which means inconsistent sound. Meanwhile, New Old Stock (NOS) is seen as a hallmark of quality, but it’s tough to source, expensive, and old enough to collect a pension. Even quality tubes are hit or miss after the better part of a century.
That’s where the Ray Tubes CORE Collection comes in. Here’s how it works: we produce batches of brand new tubes. Then, we identify the tubes that are suitable for audio. (The rest go on to fulfilling lives in other, less demanding applications.) Thanks to our rigorous selection process, you get a tube that sounds as good as NOS and lasts as long as NOS did when it was young. Win-win.
At the end of the day, the CORE Collection is about one simple thing: delivering the tube audio you know and love, without the hassle of navigating a confusing marketplace.
Modern Selection Equals Consistency
Most of the time, buying new production tubes is like entering the lottery. Maybe you’ll hit the jackpot—that once-in-a-lifetime tube that sounds better than you ever expected. More likely, you’ll get a tube that’s only okay, or that’s actively bad.
The Ray Tubes CORE Collection takes the gambling out of new production. We measure each tube’s amplification factor, internal resistance, and other critical parameters to ensure it’s suitable for audio applications. We also make sure it’s not prone to excessive microphonics. Finally, our audio engineers sign off on each tube. The end result are tubes that sound the way they should, every time.
We think consistency is the most important quality a tube can have. Think of it this way: even if you hit the lottery with one tube, what happens if your amp needs two? Unmatched tubes won’t live up to their capabilities. Our meticulous selection process allows us to offer tubes in our CORE Collection as matched pairs.
Modern Production Equals Reliability
Vacuum tubes are delicate electrical components. Books have been written on the myriad ways they can fail — books with names like Getting the Most Out of Vacuum Tubes and first chapters titled Catastrophic Failures. We read them, and then we used that knowledge to make sure our tubes wouldn’t fail.
This is where new production has a big advantage over NOS. Our tubes haven’t been languishing for years while their components slowly deteriorate. Instead, they’re fresh out of our factories, built to our exact specifications—and we check our work. Each tube is inspected to make sure the vacuum seal holds and put through an extended burn-in period to weed out early failures.
Our thorough quality control is why we can offer the Ray Tubes One Year Warranty. If you buy a NOS tube that turns out to be a dud, there’s nothing you can do. With the CORE Collection, you’ll have peace of mind.
More Details
The Ray Tubes One Year Warranty
Most vacuum tubes are notoriously fickle. That’s why warranties are rare. But we trust our products and we’re proud to offer our One Year Warranty against manufacturing defects. Click here for details.
Compatible Amps
Click here to explore Ray Tubes' Tube Amp Compatibility List.
Package Contents
- Set of two, or single vacuum tube
- User handbook featuring burn-in guidelines
- Certificate of authenticity and warranty
Technical Specifications
- Tube Type: 12AT7 / ECC81 / 6201 / CV4024
- Tube Socket: 9-pin
Heater
- Heater Voltage: 6.3 V (parallel) / 12.6 V (series)
- Heater Current: 0.30 A / 0.15 A
Maximum Ratings in Class A Amplification (Per Section)
- Anode Voltage: 300 V
- Grid Voltage: –50 V
- Anode Dissipation Power: 2.5 W
- Heater-to-Cathode Voltage: ±90 V
Grid Circuit Resistance
- Self Bias: 1 MΩ
- Fixed Bias: 0.25 MΩ
Interelectrode Capacitance
- Grid-to-Grid: 0.005 pF
- Plate-to-Plate: 0.4 pF
- Grid-to-Plate (per section): 1.5 pF
- Grid-to-Cathode/Heater (per section): 2.2 pF
- Plate-to-Cathode/Heater (per section): 0.5 pF
- Heater-to-Cathode (per section): 2.4 pF
- Plate-to-Cathode (per section): 0.2 pF
- Cathode-to-Heater/Grid (per section): 4.6 pF
- Plate-to-Heater/Grid (per section): 1.8 pF
Static Parameters
- Anode Voltage: 100 V / 250 V
- Anode Current: 3.7 mA / 10 mA
- Transconductance: 4 mA/V / 5.5 mA/V
- Cathode Resistor: 270 Ω / 200 Ω
- Amplification Factor: 60 / 60
- Approx. Internal Resistance: 15 kΩ / 10.9 kΩ
- Approx. Grid Voltage: –5 V / –12 V
Specs

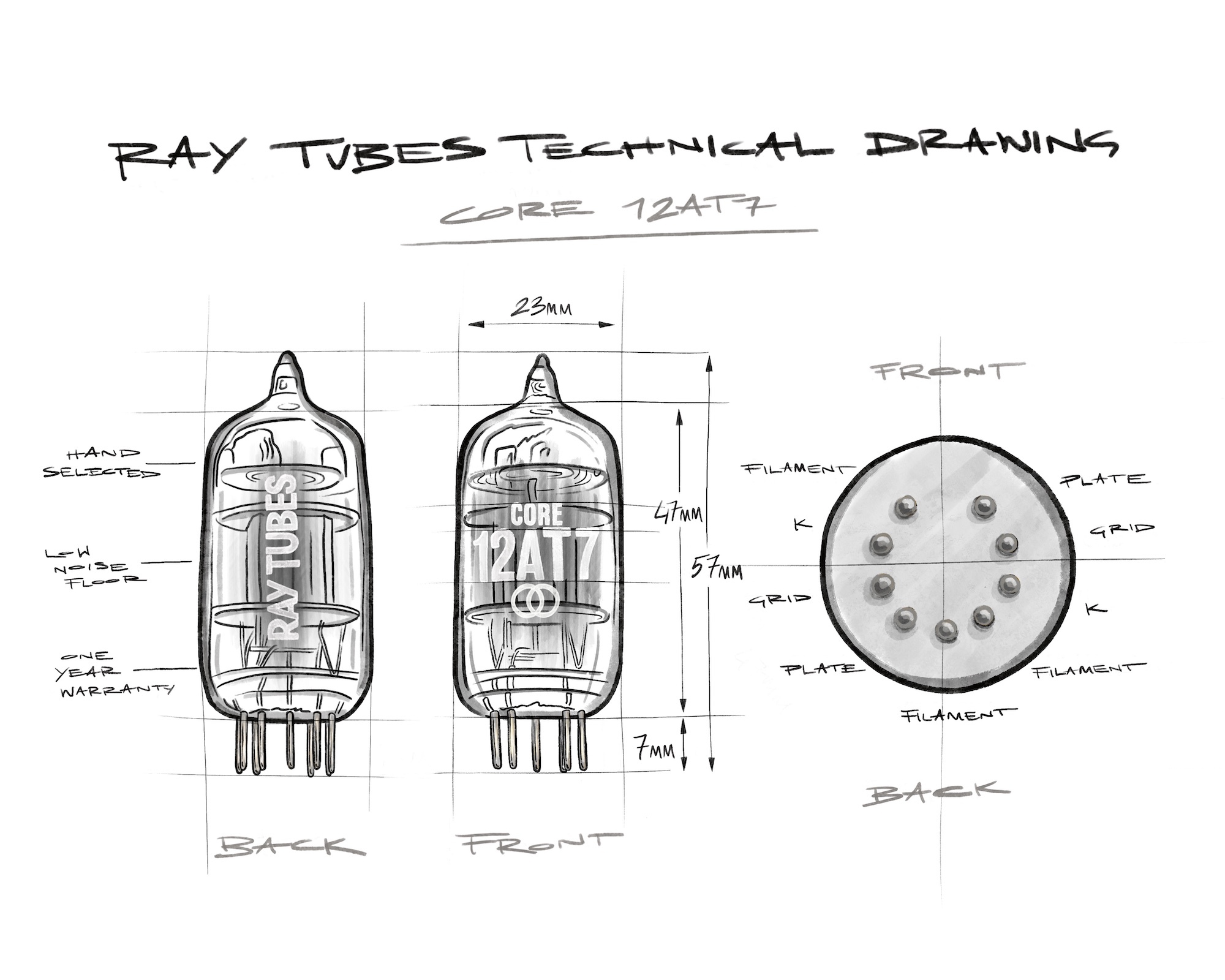

Dimensions
About Ray Tubes
Warranty
The Ray Tubes One Year Warranty
This warranty covers manufacturing defects for twelve months after purchase. We believe that everyone who buys our tubes deserves at least a year of quality, hassle-free sound, and if our tubes get in the way of your bliss, we'll make it right. Click here for more details.
