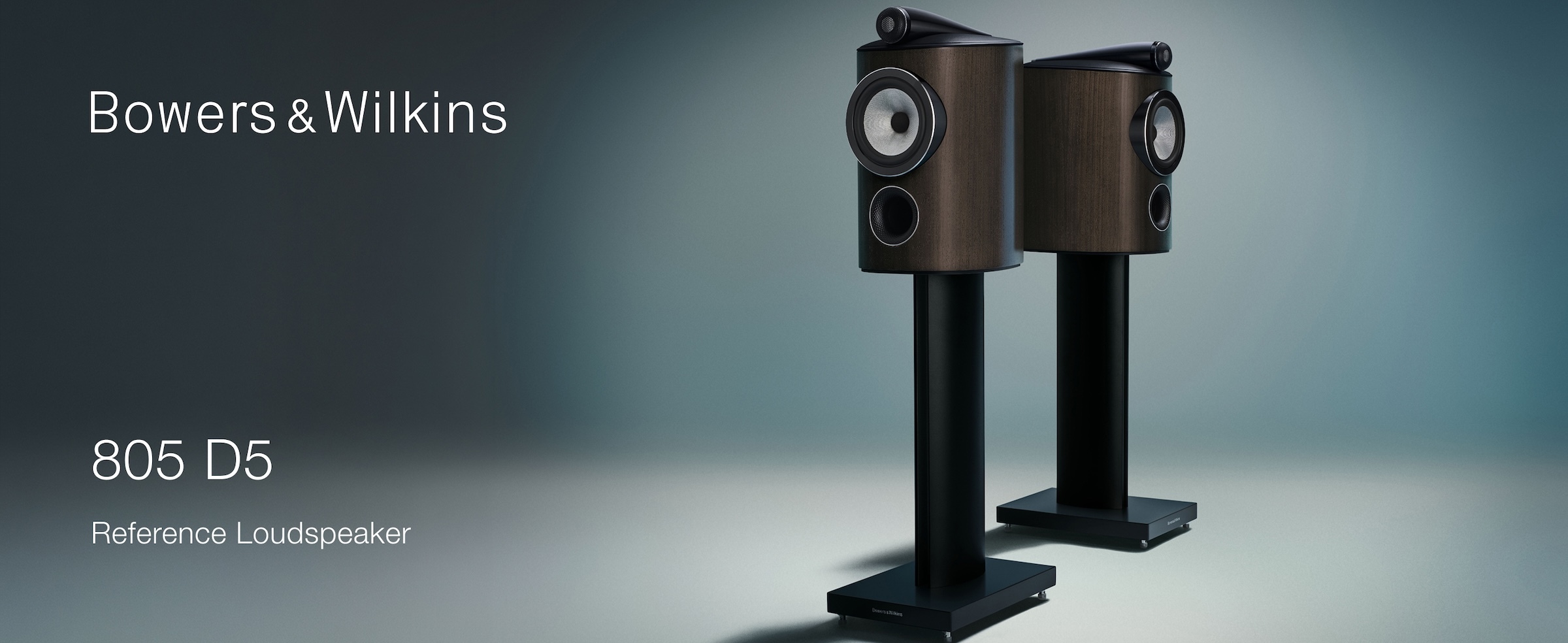

The 805 D5 standmount loudspeaker is the most compact model in the 800 Series Diamond range. While it’s best suited for smaller listening spaces, its large-scale performance greatly exceeds its modest stature.
Equipped with our Diamond dome tweeter, Solid Body Tweeter-on-Top and Continuum mid-bass cone housed in a reverse wrap cabinet, 805 D5 can be mounted securely atop its bespoke speaker stands, available separately.
Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 805 D5 is proof positive that small can still be beautiful.
800 Series Diamond D5
It took us 60 years to make loudspeakers this good. Not because we were working slowly. Because we refused to stop.
Every generation of 800 Series begins with the same question: what stands in the way of the music? And every generation answers it: in new materials, in advanced engineering, in the things you cannot see but will absolutely hear.
The new 800 Series Diamond is the furthest we have ever gone. The same iconic form. A completely different standard of sound. Musicians record with it because they trust it. Engineers mix with it because it tells the truth. Listeners keep it for life because nothing else comes close.
True Sound. Nothing added. Nothing taken away. 60 years in the making.
Diamond dome tweeter
Diamond dome tweeter technology remains at the heart of 800 Series Diamond. Exceptionally stiff yet incredibly light, diamond pushes the break-up frequency to an extraordinary 70kHz — far beyond human hearing — delivering outstanding clarity, precision and openness. Grown using advanced chemical vapour deposition, each dome ensures unrivalled detail and natural sound reproduction.
Solid Body Tweeter
The latest incarnation of our iconic Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system and an all-new design of tweeter grille that has been optimised to produce an even more free and open sound with high frequencies. As before, the carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.
Optimised Midrange / Bass Drive Unit
Featuring upgraded motor systems derived from the acclaimed Signature range of loudspeakers, the new bass/mid, midrange and bass drive units in all of the new 800 Series Diamond D5 models deliver a cleaner, lower-distortion sound for a more accurate and revealing presentation.
Continuum™ Cone
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Enhanced Matrix™
Matrix™ bracing uses interlocking panels to reinforce the internal walls of loudspeaker cabinets in all directions, reducing resonance and creating a more believable soundstage. Every model in the new 800 Series Diamond benefits from an upgraded Matrix design that combines solid plywood construction with aluminium bracing to reinforce key stress points.
Reverse Wrap Cabinet
Instead of a flat-fronted speaker with a curved back, 800 Series Diamond cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine. Fewer joins make for a stiffer, more inert structure, and a curved front means less baffling around the drive units. So sound dispersion is improved, and cabinet reflection is reduced.
Space Frame Bracing
In a further improvement to the massively stiff enclosure in the 800 Series Diamond range, the new D5 models introduce aluminium Space Frame Bracing rails to the rear of each cabinet. These highly stiff constructions further fortify the cabinet against unwanted mechanical vibration, contributing to an even more spacious and immersive soundstage.
Upgraded Rear-Mounted Crossover
800 Series Diamond use upgraded rear-mounted crossover designs mounted on stiff aluminium spines. This isolates the sensitive capacitors from the unwanted effects of air pressure within the enclosure and makes for a very effective heatsink to ensure optimum performance when in use.
New Aluminium Top Plate with Damping Collar
Every stereo model in the new 800 Series Diamond range has a significantly upgraded cabinet design with an all-new aluminium top section for even greater stiffness.
Leather by Connolly
This design also provides a perfect mounting point for all-new Leather by Connolly trim; we use luxurious, full-grain black leather for the Stealth Black and Dark Walnut finishes, and light grey leather for Warm White and Light Walnut.
